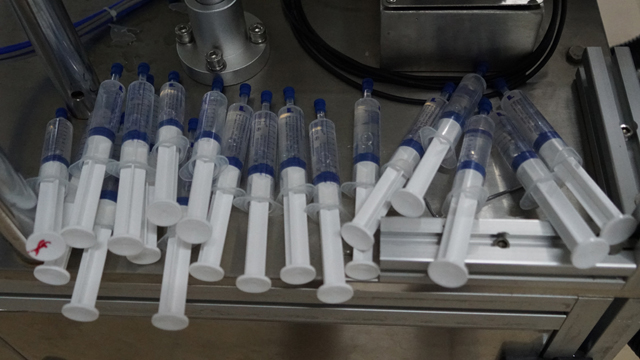

PSF filler packaging machines pre-filled syringes cosmetic medical gel 6heads vacuum filling closing equipment fully automatic

The machine model YX-PSF06 Medical gel syringe filling plugging sealing pharmaceutical packaging equipment is suitable for liquid &rubber plugging on glass or plastic syringes. other types of syringe are also up to custom made.



6 nozzles are for filling simultaneously .plugging can be either by pressing down or screwing ways.
Plugging is done parallelly with filling .multi points inspection with optical fiber sensors. neither filling nor plugging when syringe is missed.
All product contact parts are of AISI316L and medical silicon.
Actual working status can be displayed on touch screen with multi languages.
Rotating plunger pumps are driven with servo motor. Precision adjustment can be made on touch screen without any tools. each plunger pump can be adjustable slightly.
Application of syringe for filling plugging capping sealing labeling line:
Pre-filled syringes have emerged as one of the fastest-growing choices for unit dose medication as the pharmaceutical industry seeks new and more convenient drug delivery methods.
Pharmaceutical companies are able to minimize drug waste and increase product life span, while patients are able to self-administer injectable drugs at their home instead of the hospital.
The market has expanded and is exploring all options outside of the traditional process. In the past, glass syringes dominated the market, but there has been a movement toward plastic and disposable syringes. Pre-filled syringes have also been utilized across a wide range of therapeutic sectors, such as vaccines, blood stimulants, and therapeutic proteins.
Eliminating dosing errors and ease of use are two of the greatest advantages of pre-filled syringes. However, there are a number of challenges that manufacturers face, such as the interaction between the pre-filled syringes and the drug, stability concerns, and quality control.



Machine drawing&Basic parameter of model YX-PSF06 pre-sterilized syringe filling plugging capping machine:

Model	YX-PSF06
Filling volume	0.5ml-100ml
Number of filling head	6sets
Capacity	1800-3600 syringes/hour
Sealing method	Pressure or screw
Compressed air	6kg/cm2,0.15m3/min
Supply	3P 380V/220V 50-60Hz 2.0Kw
Dimension	1800*800*1700mm (L*W*H)
Net weight	750Kg

Component origin&Configuration of model YX-PSF06

NO	NAME	QTY	ORIGIN	REMARK
1	Filling needle	1	Self-produce	316L,mirror polish
2	Ceramic pump	1	Jiangsu
3	Ceramic valve	1	Jiangsu
4	Transmission motor	1	Jiangsu.Deli	0.75KW
5	Servo Motor	4	Taiwan,Delta	400W
6	Touch screen	1	Taiwan,Eview	7 inches
7	PLC	1	Taiwan,Delta
8	Air-break switch	6	Zhejiang,CHNT
9	Lead screw	4	Taiwan,Sheheng Jaan	Ball screw (high resolution)
10	Linear guide way	6	Japan,IKD
11	Solenoid valve	12	Japan SMC
12	Cylinder	12	Tawiwan Airtac
13	Optical fiber	3	Japan Panasonic
14	Pressure controller	4	JAPAN SMC
15	The isolation glass	6	ACRYLIC	8mm thickness

Wooden case packing for pre-syringe filling line

ALL RIGHTS RESERVED BY ®PENGLAI INDUSTRIAL CORPORATION LIMITED

Mid-autumn Holiday Enjoyment of QianTang River Tidal Bore Famous Natural Scene in East China

Enjoyment of tidal bore in Qiantang jiang River Mid automn Holiday 2013 September

Qiantang River is the biggest in Zhejiang Province, running from the west to Hangzhou Bay in the east. It serves as a river hinge, playing an important role in the water-transportation between the east and the west. It is encircled by a group of economically booming cities including Shanghai,

the leading industrial and commercial hub of the country, and Ningbo, one of China's leading port cities. The extraordinary surging tide of the River is a world-renowned natural wonder caused by the gravitational pull of the stars and planets. The centrifugal force produced by the rotation of the earth and by the peculiar bottleneck shape of Hangzhou Bay makes it easy for the tide to come in, but difficult for it to ebb.
The soaring tide of the Qiantang River is such a marvelous spectacle that only the Amazon River's surging tide rivals it! Annually, millions of people from both home and abroad flock there to watch it on the eighteenth day of the eighth lunar month (also around the Mid-Autumn Day). When the surging tide comes, the water can rise up to a height of 30 feet and the noise it generates sounds like thunder, or thousands of horses running. Various activities will also be held to celebrate the annual Tide - Watching Festival, according to local custom. In terms of its history, the custom of watching the bore tide has happened for more than 2000 years. It first appeared during the first century. Then, it became popular in the Tang Dynasty (about 7th -13th century). Yangong town in Haijing 45 km (about 28 miles) from Hangzhou is the best place to watch the Qiantang Tide.
\
The rushing tide can be dangerous if you are careless.So it's best to listen to the advice of the local policemen there whose job it is to ensure your safety and security. Qiantang River BridgeCrossing the river is the Qiantang River Bridge. It is China's first self-designed and self-built bridge, which took from April 1934 to Sept 1937 to complete. the bridge is comprised of its main body and the bridge approach, stretching a distance of 1453 meters (4767 feet). It is also the first modern double - layer bridge in the country. The upper layer of the bridge is highway and the layer below is railway. Qiantang River Bridge is designed by the famous Chinese bridge engineer Mao Yisheng, who defied the words spoken by foreigners that it was impossible to construct a bridge in such a spot, and who made a great contribution to the Chinese bridge building industry. Looking out from the Six Harmonies Pagoda, one can get a panoramic view of the mighty Qiantang River, the majestic Qiantang River Bridge, and the surrounding landscape.

http://cosmeticsmachinery.blogspot.com or http://youtube.com/user/videofilmfiles

High speed essential oil bottles filling capping labeling machine 55BMP liquid bottling equipment fully automatic

Our Regular customers from USA(North America) placed another order on two(2*) pcs of machines: model YX-50G high speed customized essential oil filling capping bottling line.

For all the machines purchased it is clear to confirm all the information on the products so we often ask our customers to freight the samples to test and commission the machines in order that the machines and customer's products gains the best compatibility and adaptability.
After getting the confirmation &samples of the product in sizes and drawing for manufacturing the filling capping machines
we spent only 7days finishing everything and made the machines ready after testing them in a satisfactory feedback.
Recently our customers sent us the positive commentar on the machines which keep running very well in their factory ever since the machines arrived their factory.
The machines was shipped via ocean to CA USA . The documentaries certificated with ISO&CO&CE together with other files necessory are sent via DHL to customer for assisting customers to clear the custom.



The bottling line is suitable for the applications of 5-100ml liquid filling and sealing in pharmaceutical industry, the YX-50G Small Dose Liquid Filling Machine is with reasonable structure, high precision indexing table for filling, capping, cap pressing，precision peristaltic pump filling; The machine is controlled by the PLC with the advantage of easy operation and maintenance. There is the system for functioning as no filling without bottles feeding, no plugging without bottles sensoring, no capping without pluggers. The filling line, made of the stainless steel as its platform for working ,is in line with GMP standard. The machine controlled by pneumatic and electric dual system in the machine adopts the mechanical transmission, which can transmit the power in stable and lower power-consumption plus the accurate positioning features .The filling line is especially used in the mass production .

Main parts &working principle

1. The machine is constituted of such parts as conveyor belt, sketch of machine, vibrator for bottles & caps, peristaltic pump etc.
2. Prepare sufficient bottles, plugs, caps and liquid. The plugs and caps shall fill fully the vibrating tracks and at the plugging and capping work stations. The bottles are to be delivered by conveyor belt to the indexing star wheel, then the bottles will be delivered intermittently by the indexing star wheel to the filling, plugging and capping positions.

3. The liquid is to be sucked in by the peristaltic pump and then delivered by the silicone tubes. Finally the liquid will be filled into the bottles by the needle tubing which are moving automatically up and down. For each moving up and down the needle tubes, two cycles of filling is done. The filling is completed by the cyclic insertion of filling nozzles into the bottles. With no-bottle detecting photoelectric eye ,if there is no bottles on the work station, the peristaltic pump stops work as no bottles can be detected.
4. The plug vibrating bowl delivers the plugs to the plug inserting station, meanwhile the filled bottles are transferred intermittently by the indexing star wheel to the position under the plugging station.
5. Then the cylinder drives the plug inserter to dive downward and push the plugs into the bottles. The plug inserted bottles will be transferred by the indexing star wheel to the cap falling and capping stations
6. The capping head spins and moves up and down as a whole. When the bottles stop under it, the downward capping head clutches the caps and finishes capping. With plug detecting photo-electric eye, once there is no bottles on station or there is bottle but no cap, then the cap pressing mechanism will stop motioning as no inner plugs can be detected. By doing this, the finished product can be avoid being without inner plugs. The capping is mainly achieved by the up and down spinning motions,
basic parameter of Model YX-50G 30ml E liquid bottles glass tubes filler dropper reducer plugging labeling machine fully automatic Máquina de llenado de líquido E:

Model YX-50G
Filling Volume 1-150ml
Output 40-60 Bottles/min
Filling Precision less than ±1%
Power Supply 220V/50Hz (customized according to customer's requirements)
Capping Rate more than 99%
Stoppering rate more than 99% Labeling rate more than 99%
Air Supply 1.3 m3/h 0.4-0.8Mpa
Power 2.0 kw
Weight 650 kg
Dimension 6000*3200*1750mm

Our Factory since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about various high quality machinery like Model YX-50G 50Bottles per min speed essential oil filling capping 4heads exported to USA 出口美國4頭精油高速機充填,please email via jackdu999@yahoo.com or browse our website http://penglaichina.com.
